Description

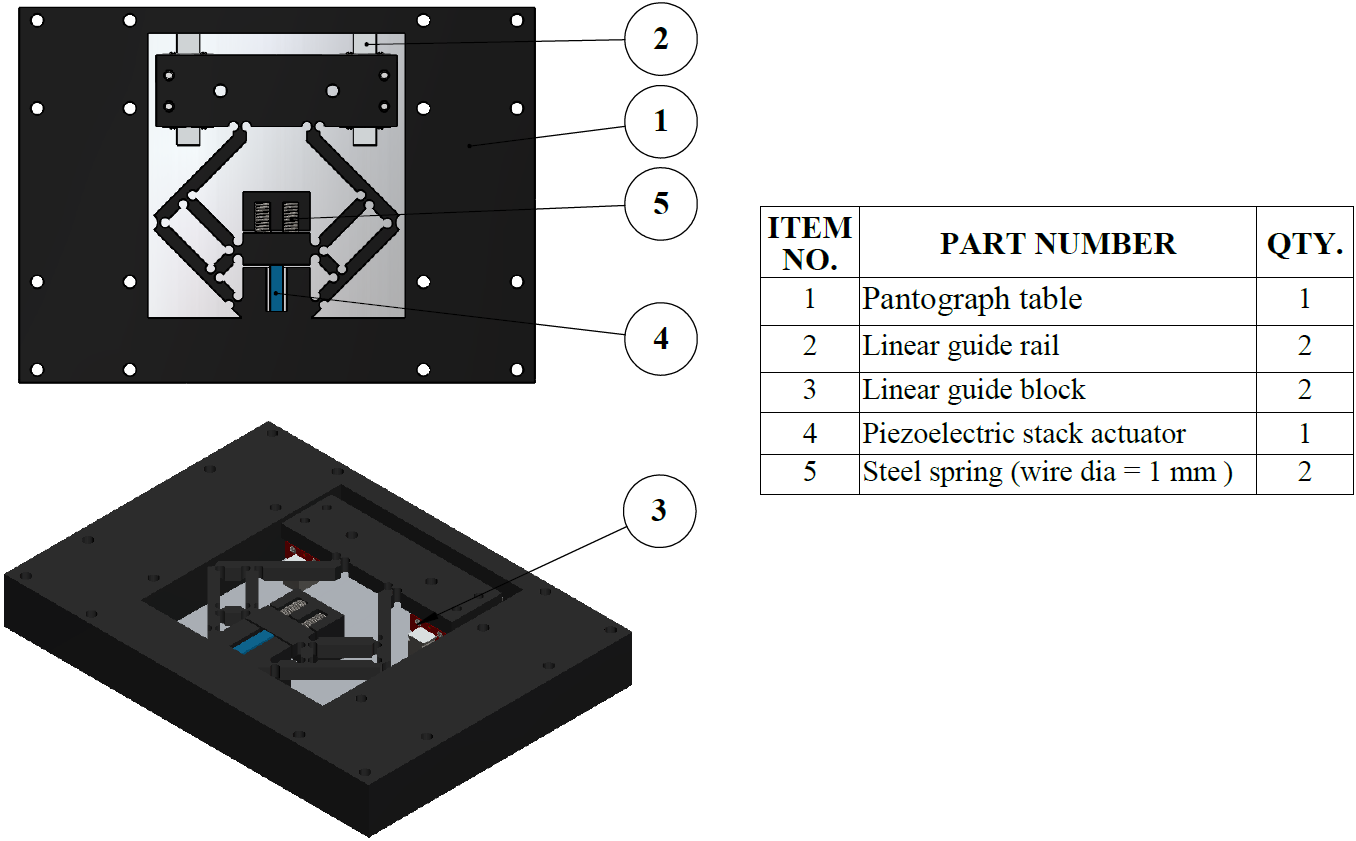

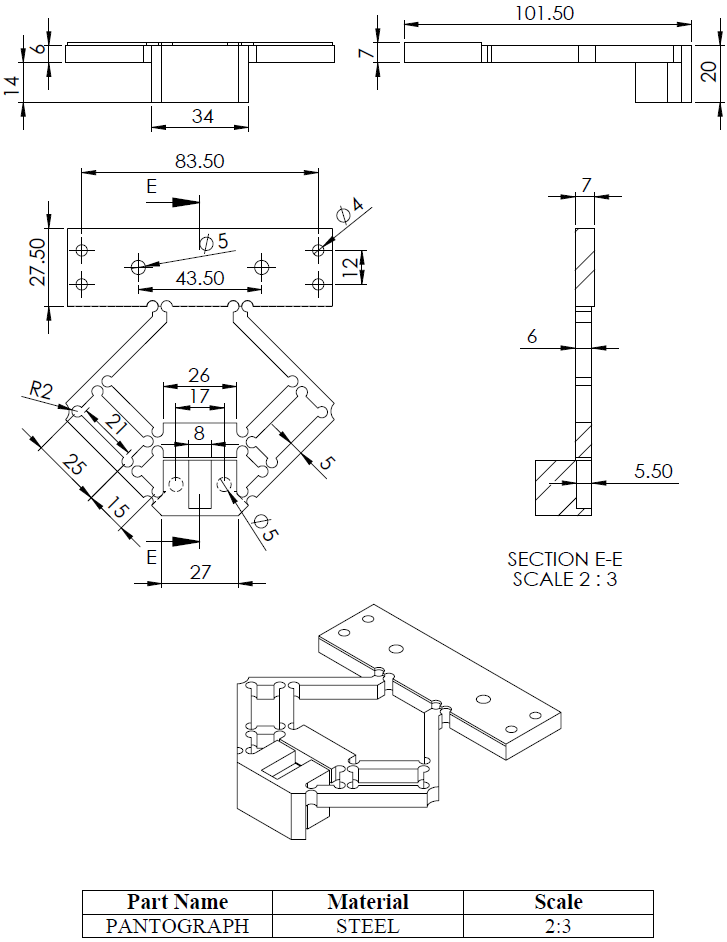

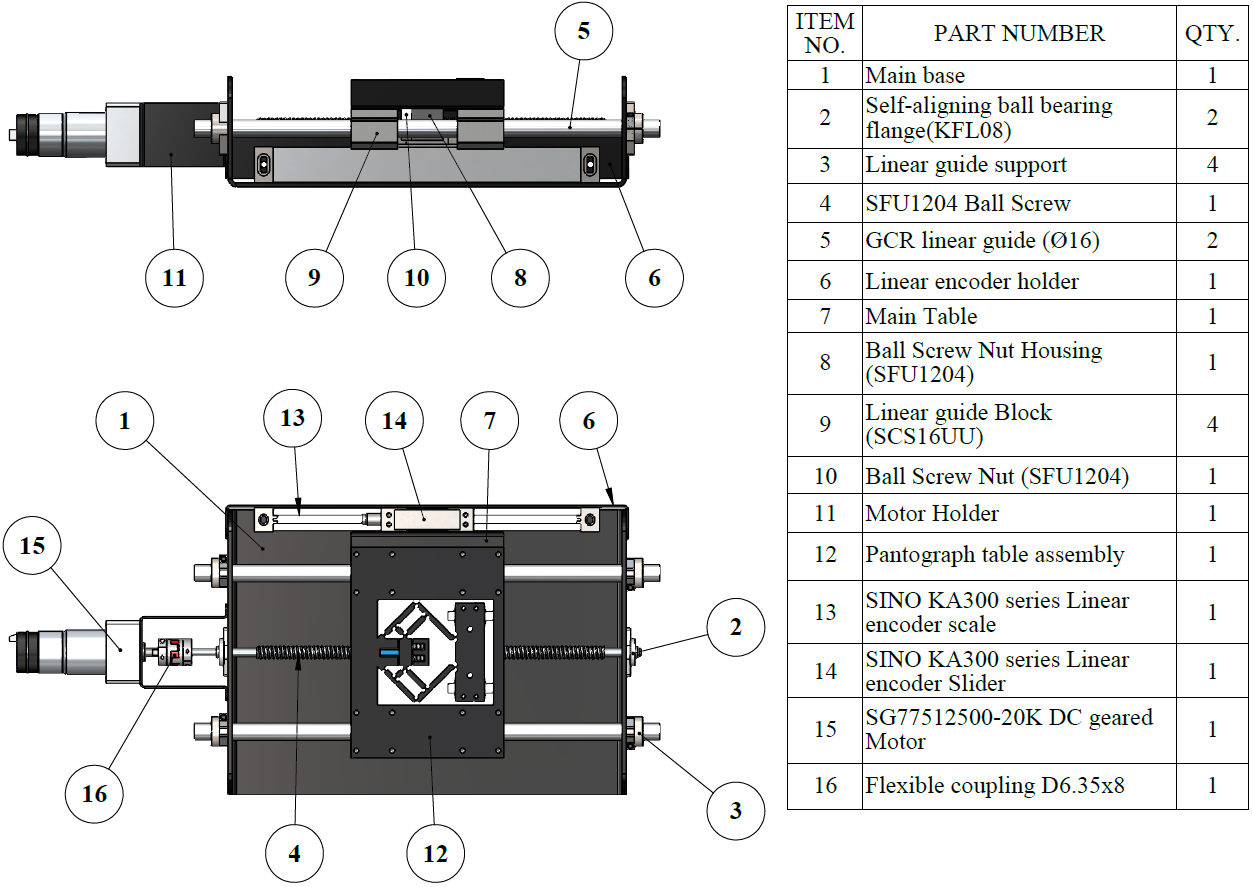

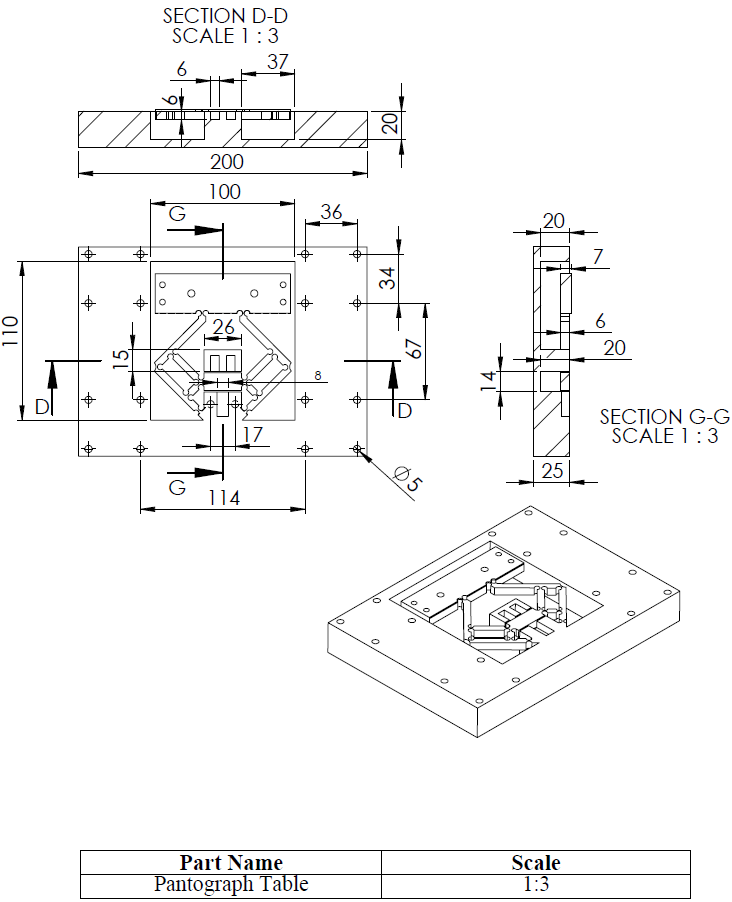

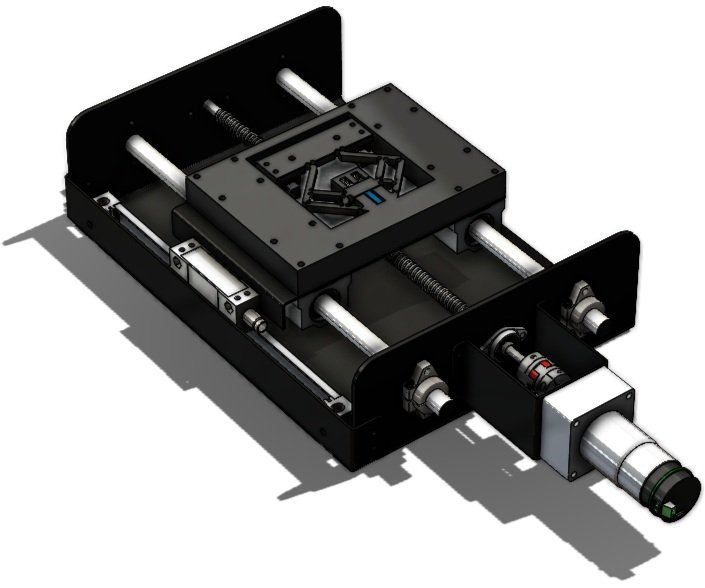

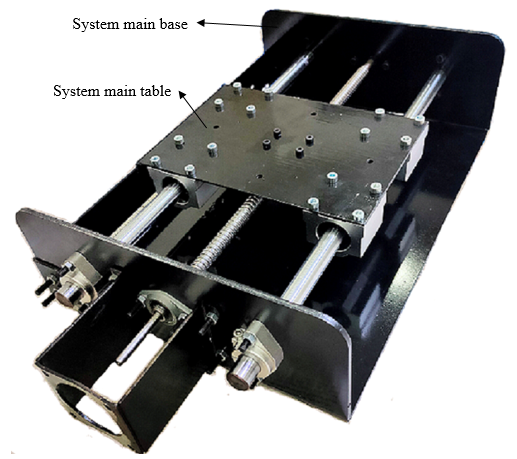

This dual-stage nanopositioning system, developed during my Master's work, consists of a modular pantograph compliant piezo-actuated mechanism mounted on a long-stroke ball screw-driven stage. The piezo-actuated mechanism compensates for positioning errors in the ball screw stage while achieving nanometer-scale precision.
